Understanding Glass Types
● Importance of Glass in Daily Life
Glass is an integral part of modern life, forming the backbone of many everyday objects and architectural designs. From windows and doors to shower enclosures and car windshields, glass is ubiquitous. However, not all glass is created equal, and the choice between tempered glass and regular glass can significantly impact the performance, safety, and aesthetics of a product.
● Overview of Standard vs. Tempered Glass
Both standard and tempered glass have their unique characteristics and applications. Standard glass, also known as annealed glass, is the most common type of glass. It is easy to cut and shape and is used in a variety of applications. On the other hand, tempered glass is a type of safety glass that is much stronger and designed to break into small, blunt pieces rather than sharp shards.
Manufacturing Differences
● Annealing Process for Standard Glass
Standard glass is produced through an annealing process, which involves heating the glass to a high temperature and then allowing it to cool slowly. This gradual cooling process relieves internal stresses and makes the glass easier to cut and shape. However, this also makes standard glass more prone to breaking into sharp, jagged pieces when shattered.
● Tempering Process and Its Impact on Glass Strength
Tempered glass undergoes a different manufacturing process known as tempering. The glass is first cut to the desired size and then heated to a temperature of around 620 degrees Celsius. It is then rapidly cooled using high-pressure air jets. This process increases the surface tension, making the glass approximately four times stronger than standard glass. The rapid cooling process also ensures that tempered glass breaks into small, relatively harmless pieces when shattered, adding an extra layer of safety.
Strength and Durability Comparison
● Relative Strength: Tempered vs. Standard Glass
One of the most significant differences between tempered glass and standard glass is their strength. Tempered glass is about four times stronger than standard glass, making it more resistant to impact and thermal stress. This increased strength makes tempered glass suitable for high-traffic areas and applications where safety is a concern.
● Practical Implications of Glass Strength
The enhanced strength of tempered glass means it can withstand greater forces without breaking. This makes it ideal for use in areas prone to impact, such as storefronts, glass doors, and car windows. Standard glass, while still durable, is more suitable for applications where the likelihood of impact is low, such as picture frames and some interior windows.
Safety Features of Tempered Glass
● How Tempered Glass Shatters Safely
Unlike standard glass, which breaks into large, sharp shards, tempered glass fractures into small, blunt pieces. This characteristic is due to the internal stresses created during the tempering process. These small pieces are less likely to cause injury, making tempered glass a safer option for environments where human safety is a priority.
● Examples of Tempered Glass in Safety Applications
Tempered glass is commonly used in situations where safety is a significant concern. Examples include side and rear windows in vehicles, entrance doors, shower and tub enclosures, racquetball courts, patio furniture, microwave ovens, and skylights. In these applications, the enhanced safety features of tempered glass make it the preferred choice.
Customization and Flexibility
● Modifying Standard Glass: Cutting, Reshaping, etc.
One of the advantages of standard glass is its flexibility in terms of customization. It can be easily cut, reshaped, polished, and drilled without the risk of breaking. This makes it a versatile option for a variety of applications, including custom-sized windows, decorative pieces, and intricate designs.
● Limitations of Customizing Tempered Glass
Once tempered, glass cannot be cut or drilled without shattering. Any modifications must be made before the tempering process. This limitation means that custom tempered glass must be precisely measured and fabricated to meet specific requirements. Despite this restriction, tempered glass can still be customized in terms of size, shape, and finish, making it suitable for a wide range of applications.
Applications in Architecture and Design
● Use of Tempered Glass in Building Architecture

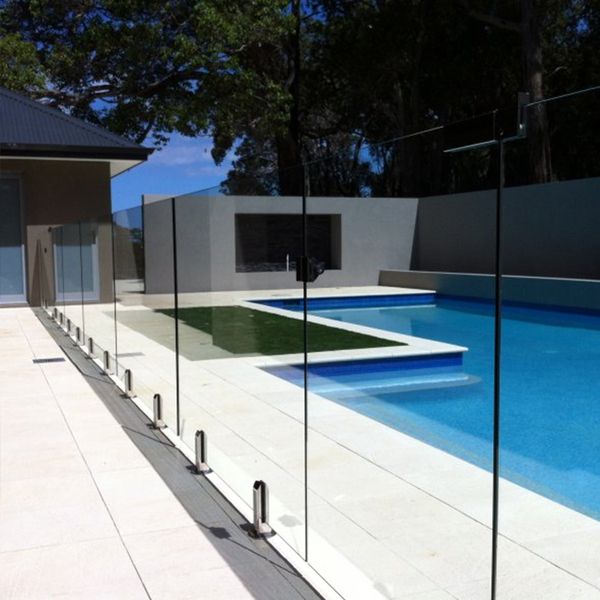

Tempered glass is widely used in modern architecture due to its strength and safety features. It is commonly found in building facades, glass railings, skylights, and glass floors. The ability to withstand high stress and impact makes tempered glass an excellent choice for these applications, where both safety and aesthetics are essential.
● Decorative and Functional Uses of Standard Glass
Standard glass is often used in architectural applications that do not require the enhanced safety features of tempered glass. It is popular for decorative purposes, such as stained glass windows, glass partitions, and interior doors. The ease of customization allows for intricate designs and detailed work, making standard glass a versatile material for both functional and decorative uses.
Cost Implications
● Price Differences Between Standard and Tempered Glass
One of the primary considerations when choosing between tempered glass and standard glass is cost. Tempered glass is generally more expensive due to the additional processing required to increase its strength and safety features. However, the long-term benefits, such as increased durability and safety, often justify the higher initial cost.
● Long-Term Cost-Benefit Analysis
While the upfront cost of tempered glass may be higher, its durability and safety features can result in long-term savings. Reduced risk of injury and lower likelihood of breakage mean fewer replacements and repairs. For applications where safety is a priority, the long-term benefits of tempered glass often outweigh the initial investment.
Environmental and Energy Considerations
● Energy Efficiency of Tempered Glass
Tempered glass can contribute to energy efficiency in buildings. It is often used in double or triple-glazed windows, which provide better insulation and reduce energy consumption for heating and cooling. The durability of tempered glass also means fewer replacements, reducing the overall environmental impact.
● Environmental Impact of Glass Production
Both tempered and standard glass have environmental considerations related to their production. The annealing and tempering processes require significant energy, but advances in manufacturing technology are helping to reduce the environmental footprint. Recycling and reusing glass can also mitigate some of the environmental impacts.
Regulations and Standards
● Building Codes: When Tempered Glass Is Required
Building codes and regulations often dictate when tempered glass must be used. For example, safety regulations require tempered glass in areas such as shower doors, glass doors, and certain types of windows. Compliance with these standards ensures the safety of building occupants and helps prevent injuries.
● Standards and Certifications for Glass Quality
Various standards and certifications ensure the quality and safety of both tempered and standard glass. These include certifications such as the American National Standards Institute (ANSI) and the International Organization for Standardization (ISO). Meeting these standards is crucial for manufacturers and ensures that the glass used in construction and other applications is of the highest quality.
Conclusion: Choosing the Right Glass
● Recap of Key Points
In summary, the choice between tempered glass and standard glass depends on various factors, including safety, strength, customization options, cost, and environmental considerations. Tempered glass offers enhanced strength and safety features, making it ideal for high-traffic and impact-prone areas. Standard glass, on the other hand, is more versatile in terms of customization and is suitable for decorative and low-impact applications.
● Decision-Making Tips for Selecting Glass Type
When deciding which type of glass to use, consider the specific requirements of your project. Assess the likelihood of impact or breakage, the need for customization, budget constraints, and regulatory requirements. By carefully evaluating these factors, you can make an informed decision that ensures the safety, functionality, and aesthetics of your project.
